CropVIEW offers a remote high-resolution view of your crops, fields and orchards so you can monitor your crops as they grow.
Remotely Monitor Your Field, Crops And Orchards Through This Time-Saving Photo Device

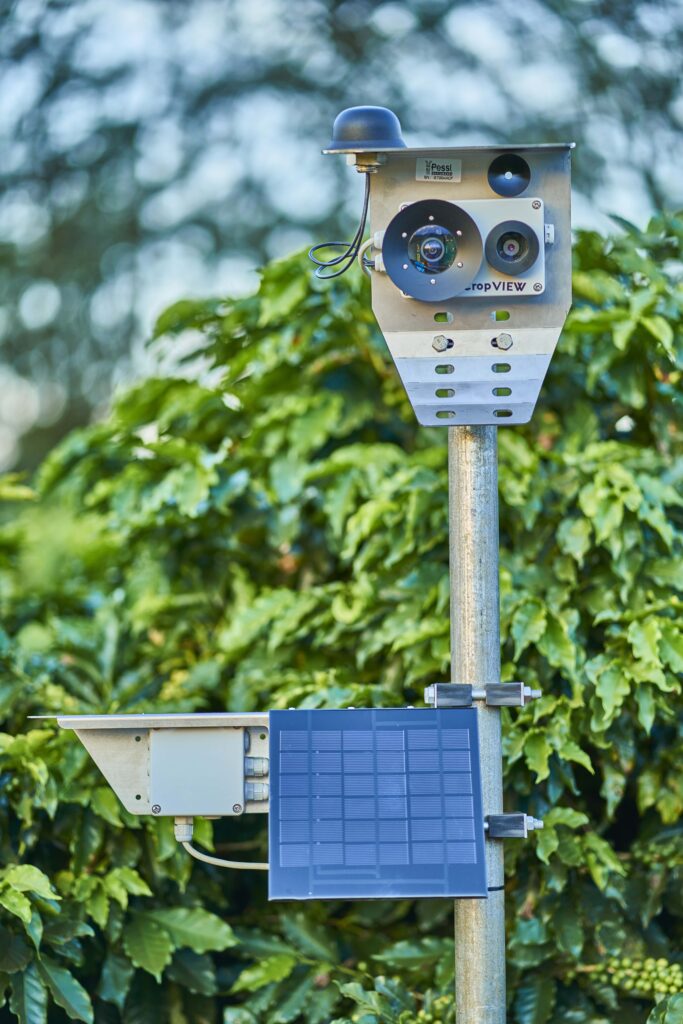

CropVIEW uses a camera system with integrated electronics (camera, modem, power source with solar panel) to monitor the growth and development of your crops. Installed in the field where it’s needed most, the device runs efficiently on a combination of solar and battery power.
A 10 megapixel camera takes periodic high-resolution pictures of your field, crop or fruit and automatically uploads the images (through a mobile network) to the FieldClimate platform where results can be accessed on computer or mobile devices. Data is available in real-time and can be stored for further analysis. For apples only, photos are analyzed with automatic detection of fruits as well as measurement of fruit diameters.
When installing your CropVIEW station, you need to take into consideration the sun position – make sure that your device is not facing directly into the sun at the time photos are scheduled to be taken.
HOW MANY STATIONS DO I NEED?
You may need one device per growing site, or if there are different varieties or crops at the growing site, you may want more devices if you wish to monitor them all. The CropVIEW comes in several variations to make it flexible enough to use in farm fields, research plots, crop canopies, orchards and more.
KEY BENEFITS
CropVIEW saves you time during your busy season. With this powerful high-resolution camera system, you no longer have to walk your fields to see what’s happening in your crop.
- know exactly what’s going on in your field at any given time
- carefully monitor the growth of your crop or fruit so you can optimize your resource use
- continuous photo capture gives you a complete daily picture of crop quality and yield development
- from your mobile device or computer, check seed germination or the effect of fertilizers and chemicals on your crop
- inform threshold decisions for disease and pest management with accurate visual references
- build an informative time lapse of your crop growth over an entire season
- your photo documented history gives you the ability to compare crop growth to previous seasons
CropVIEW VARIATIONS

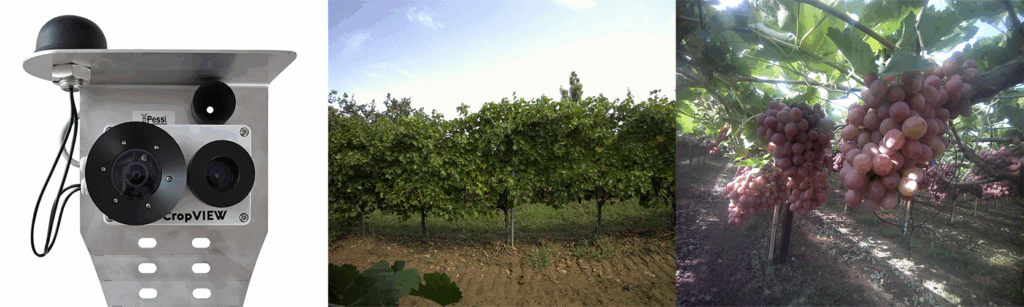

CropVIEW Dual
Equipped with two 10 MP cameras – panoramic and tele.

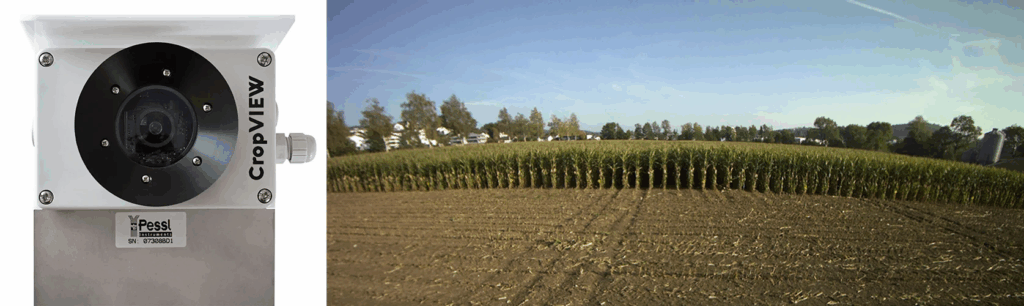

CropVIEW Panorama
Equipped with one 10 MP camera – panoramic

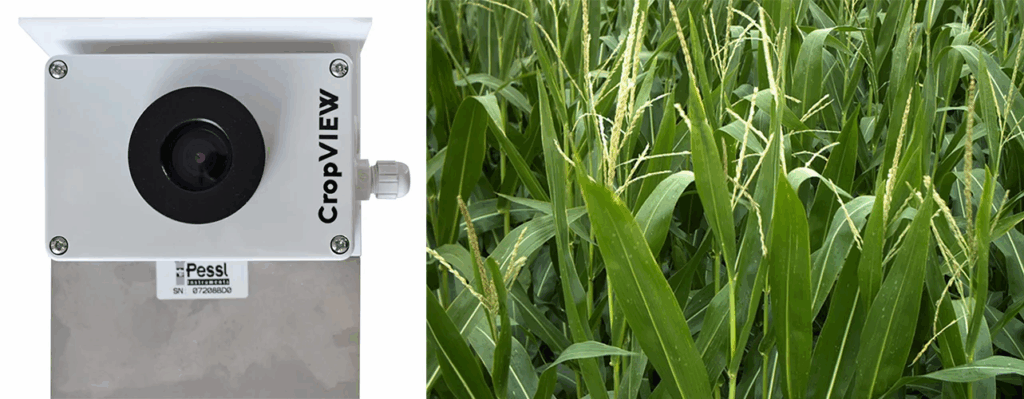

CropVIEW Tele
Equipped with one 10 MP camera – tele.
Time Lapse Growth
With CropVIEW you receive a time lapse of your crop growth so you can see your crop history from seeding to harvest.

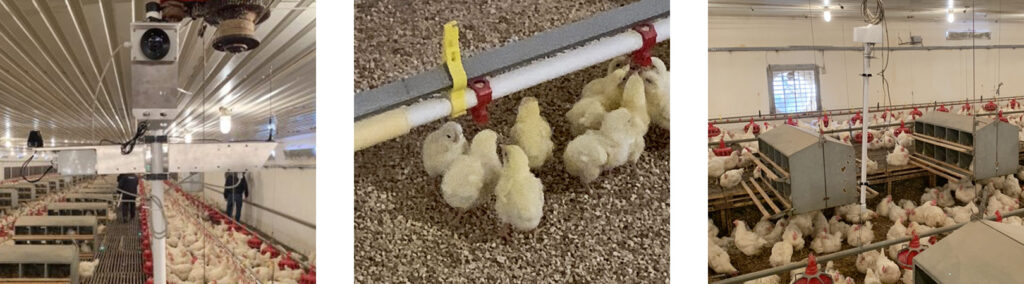

Livestock Use Case
CropVIEW can also be used in livestock farms facilitating the improvement of the breeding process and ensuring the well-being of the animals. This high-resolution camera, supported with AI, can closely monitor the growth of animals, their weight gain or loss, and can detect injured animals or animals in distress.
TECHNICAL SPECIFICATIONS
| FEATURE | VALUE |
|---|---|
|
Housing |
Power supply and sensor support box: 41 cm L x 13 cm W x 7 cm H |
|
GPS receiver |
Yes |
|
Weight without
sensors |
2.2 kg |
|
Camera module |
Stainless steel base with IP65 box 27 cm L x 17 cm W x 9 cm H, weight: 1.5 kg |
|
Battery |
Rechargeable 6V, 12Ah, Operating range: -35°C to 80°C |
|
Solar panel dimensions |
17.5 x 17.5 cm, 7.2 Volt, 333 mA |
|
Model/Type |
Cortex M4 processor module with integrated Communication model
for UMTS/LTE operation |
|
Camera and optics |
MT9J003 10 Mega Pixel 2/3“ CMOS sensors – Optics DSL377A-650-F2.8
2/3“ Lens with 2.5 mm Focal length and DSL901J-650-F3.0 2/3“ Lens
with12 mm Focal Length |
|
Control Uni |
Camera Control unit base with interface to camera devices and opportunity
to connect environmental sensors (not included). Following sensors can be
connected: Rain gauge, temperature, relative humidity and leaf wetness. |
| CONTROL UNIT - SENSORS | CAMERA - PHOTOS | |
|---|---|---|
|
Measuring interval |
15 minutes |
taking photos: selected by the user (1 to max 3 times per day*) |
|
Logging Interval |
30 minutes |
taking photos: selected by the user (1 to max 3 times per day*) |
|
Transmission interval |
60 minutes |
after photo is taken |
